                    產品中心                      饋通式濾波器  交流、直流饋通電容器

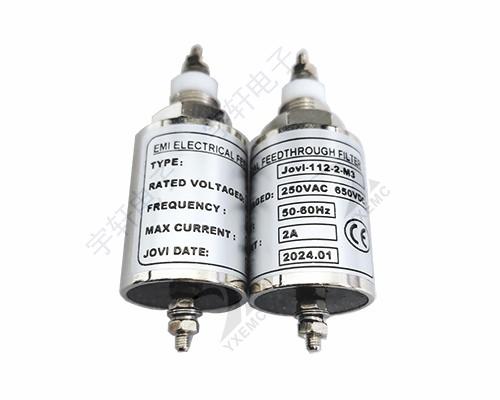

                        交流、直流饋通電容器
                        交流、直流饋通電容器
                        交流、直流饋通電容器
                        交流、直流饋通電容器
                        交流、直流饋通電容器
                        ● 貫穿艙壁安裝
                        ● 極低內部串聯電感、自愈電介質
                        ● 從KHz到GHz頻率范圍內提供高插入損耗
                        產品詳情
                        特  點 Features
                        ● 貫穿艙壁安裝Through bulkhead installation
                        ● 極低內部串聯電感、自愈電介質Very low internal series inductance, self healing dielectric
                        ● 從KHz到GHz頻率范圍內提供高插入損耗Extremely low internal series inductors
                        self-healing dielectrics provide high insertion loss in the frequency range from kHz to GHz

                        應  用 Application
                        ● 開關電源、UPS電源Switching power supply, UPS power supply
                        ● 交換機、通信基站Switch, communication base station
                        ● 醫療設備Medical equipment      屏蔽室Shielding room

                        性能指標 Characteristcs
                        額定電壓Rated voltage/工作頻率Operating Frequency
                        130VAC   50/60HZ
                        300VAC   50/60HZ
                        蕞大直流額定電壓Max DC rated voltage
                        650VDC
                        1000VDC
                        電容器等級Capacitor rating
                        Y4
                        Y2
                        耐壓試驗Test Voltage
                        1700VDC/2S
                        3000VDC/2S
                        氣候類別Climate category
                        40/100/21

                        典型電氣原理圖 Typical electrical schematic

                        Fig.1  交流、直流饋通電容器Fig.2典型電氣原理圖


                        產品型號表 Filter Table
                        型號
                        model
                        額定電壓
                        Rated voltage
                        額定電流A
                        Rated curren
                        電容量nF
                        Capacitance
                        電感量nH
                        Inductance
                        電路圖
                        Circuit diagram
                        YX-114-10-M3
                        130VAC
                        10
                        10
                        /
                        Fig.1
                        YX-114-16-M4
                        130VAC
                        16
                        470
                        /
                        Fig.1
                        YX-114-32-M4
                        130VAC
                        32
                        470
                        /
                        Fig.1
                        YX-114-63-M6
                        130VAC
                        63
                        100
                        /
                        Fig.1
                        YX-114-100-M8
                        130VAC
                        100
                        1000
                        /
                        Fig.1
                        YX-112-10-M3
                        300VAC
                        10
                        4.7
                        /
                        Fig.1
                        YX-112-16-M4
                        300VAC
                        16
                        100
                        /
                        Fig.1
                        YX-112-32-M4
                        300VAC
                        32
                        33
                        /
                        Fig.1
                        YX-112-63-M6
                        300VAC
                        63
                        10
                        /
                        Fig.1
                        YX-112-100-M8
                        300VAC
                        100
                        100
                        /
                        Fig.1
                        YX-124-10-M3
                        130VAC
                        10
                        100
                        70
                        Fig.2
                        YX-124-16-M4
                        130VAC
                        16
                        100
                        70
                        Fig.2
                        YX-124-32-M4
                        130VAC
                        32
                        100
                        70
                        Fig.2
                        YX-124-63-M6
                        130VAC
                        63
                        470
                        186
                        Fig.2
                        YX-124-100-M8
                        130VAC
                        100
                        1000
                        186
                        Fig.2
                        YX-122-10-M3
                        300VAC
                        10
                        47
                        70
                        Fig.2
                        YX-122-16-M4
                        300VAC
                        16
                        100
                        70
                        Fig.2
                        YX-122-32-M4
                        300VAC
                        32
                        100
                        70
                        Fig.2
                        YX-122-63-M6
                        300VAC
                        63
                        470
                        124
                        Fig.2
                        YX-122-100-M8
                        300VAC
                        100
                        1000
                        124
                        Fig.2

                        外形尺寸圖 Outline Drawing : mm

                        外形尺寸圖外形尺寸圖

                        型號model
                        A
                        B
                        C
                        D
                        E
                        L
                        M
                        N
                        S
                        T
                        YX-114-10-M3
                        57
                        10
                        15
                        13
                        16
                        19
                        /
                        ?10.3
                        M3
                        M10X1
                        YX-114-16-M4
                        82
                        16
                        32
                        27
                        18
                        33
                        18.3
                        ?20.3
                        M4
                        M20X1
                        YX-114-32-M4
                        82
                        16
                        32
                        27
                        18
                        33
                        18.3
                        ?20.3
                        M4
                        M20X1
                        YX-114-63-M6
                        96
                        14
                        25
                        22
                        26
                        30
                        14.3
                        ?16.3
                        M6
                        M16X1
                        YX-114-100-M8
                        133
                        19
                        38
                        27
                        32
                        50
                        22.3
                        ?24.3
                        M8
                        M24X1
                        YX-112-10-M3
                        57
                        10
                        17
                        13
                        16
                        20
                        /
                        ?10.3
                        M3
                        M10X1
                        YX-112-16-M4
                        77
                        14
                        27
                        22
                        18
                        31
                        14.3
                        ?16.3
                        M4
                        M16X1
                        YX-112-32-M4
                        75
                        12
                        22
                        17
                        18
                        31
                        10.3
                        ?12.3
                        M4
                        M12X1
                        YX-112-63-M6
                        96
                        14
                        25
                        22
                        26
                        30
                        14.3
                        ?16.3
                        M6
                        M16X1
                        YX-112-100-M8
                        113
                        16
                        32
                        27
                        32
                        33
                        18.3
                        ?20.3
                        M8
                        M20X1
                        YX-124-10-M3
                        107
                        12
                        20
                        17
                        16
                        66
                        10.3
                        ?12.3
                        M3
                        M12X1
                        YX-124-16-M4
                        106
                        12
                        20
                        17
                        18
                        61
                        10.3
                        ?12.3
                        M4
                        M12X1
                        YX-124-32-M4
                        106
                        12
                        20
                        17
                        18
                        61
                        10.3
                        ?12.3
                        M4
                        M12X1
                        YX-124-63-M6
                        173
                        16
                        32
                        27
                        26
                        105
                        18.3
                        ?20.3
                        M6
                        M20X1
                        YX-124-100-M8
                        200
                        16
                        32
                        27
                        32
                        120
                        18.3
                        ?20.3
                        M8
                        M20X1
                        YX-122-10-M3
                        140
                        12
                        20
                        17
                        16
                        99
                        10.3
                        ?12.3
                        M3
                        M12X1
                        YX-122-16-M4
                        148
                        14
                        25
                        22
                        18
                        101
                        14.3
                        ?16.3
                        M4
                        M16X1
                        YX-122-32-M4
                        148
                        14
                        25
                        22
                        18
                        101
                        14.3
                        ?16.3
                        M4
                        M16X1
                        YX-122-63-M6
                        189
                        19
                        54
                        41
                        26
                        118
                        24.3
                        ?27.3
                        M6
                        M27X1.5
                        YX-122-100-M8
                        227
                        19
                        54
                        41
                        32
                        144
                        24.3
                        ?27.3
                        M8
                        M27X1.5
                        典型插入損耗 Typical insertion Loss （50Ω測試系統，IEC/CISPR NO.17出版物）

                        典型插入損耗

                        YX-114-10-M3
                        典型插入損耗

                        YX-124-10-M3
