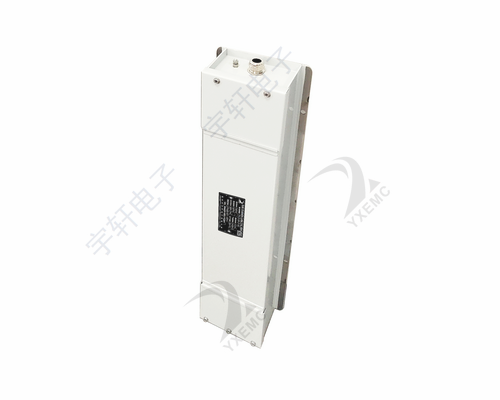

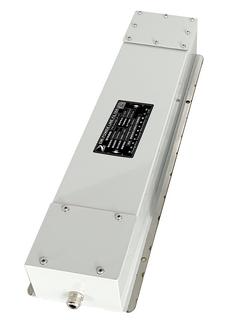

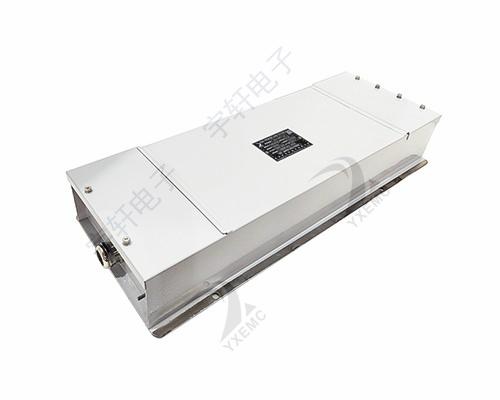

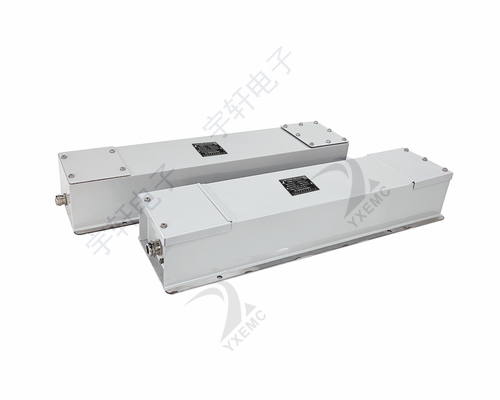

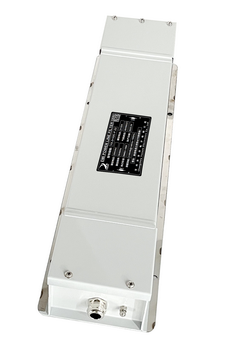

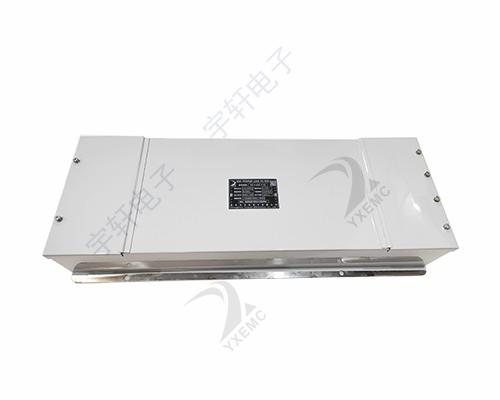

特 點 Features
● 金屬殼體采用特殊的不銹鋼材質，機械強度高，耐腐蝕性強。
The metal shell is made of special stainless steel with high mechanical strength and strong corrosion resistance.
● 獨特的接線結構設計，進線和出線可分別在打開的屏蔽腔體內接線，方便又安全。
Unique wiring structure design, the incoming line and outgoing line can be connected in the open shielding cavity respectively, which is convenient and safe.
● 單相兩線、三相四線制、直流兩線/三線電源濾波器。
Single phase two wire, three-phase four wire, DC two wire / three wire power filter.
● 體積緊湊，壓降低，漏電流小。Compact size, low voltage and low leakage current.
應 用 Application
● 電波暗室、屏蔽房、電子方艙和機柜等設施的專用配套，能有效的抑制輻射干擾。
The special supporting facilities of anechoic chamber, shielding room, electronic shelter and cabinet can effectively suppress radiation interference.

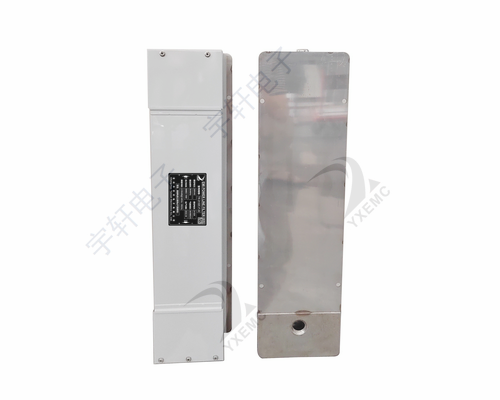

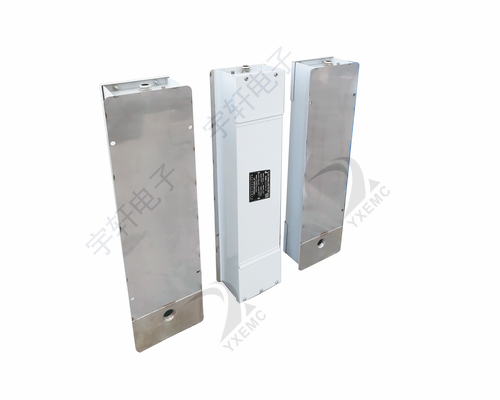

-11全螺栓式開蓋
-22壓板式開蓋
性能指標 Characteristcs
額定電壓Rated voltage | 單相Single phase 250VAC（線-線/線-地） | 三相three-phase 440/250VAC（線-線/線-地） |
工作頻率 Operating Frequency | 50/60HZ | |
耐壓試驗 Test Voltage | 1000VDC/2S（線-線Line - line） 1000VDC/2S（線-地Line - ground） 3000VDC/2S | |
電壓降△V Voltage drop | <1V（額定工作條件Rated working conditions） | |
氣候類別 Climate category | 25/070/21 | |
單相產品型號表 Filter Table 注：零地電壓為0V Note: N-G voltage is 0V
型號 model | 額定電流A Rated curren | MAX泄漏電流A leakage current | 波導螺桿 Waveguide screw | 接線螺桿 Connecting screw | 外形尺寸Fig. Outline Drawing | 插入損耗dB insertion loss |
YX-2×10C-F-11/22 | 10 | 0.2 | M24 | M6 | 1 | 100dB 備注：可拓展至40GHz remarks: It can be extended to 40GHz |
YX-2×16C-F-11/22 | 16 | 0.2 | M24 | M6 | 1 | |
YX-2×32C-F-11/22 | 32 | 0.2 | M24 | M6 | 1 | |
YX-2×50C-F-11/22 | 50 | 0.2 | M24 | M6 | 1 | |
YX-2×60C-F-11/22 | 60 | 0.2 | M33 | M6 | 2 | |
YX-2×80C-F-11/22 | 80 | 0.2 | M33 | M8 | 3 | |
YX-2×100C-F-11/22 | 100 | 0.2 | M33 | M8 | 3 | |
YX-2×150C-F-11/22 | 150 | 0.2 | M42 | M8 | 4 | |
YX-2×200C-F-11/22 | 200 | 0.2 | M42 | M12 | 5 |
型號 model | 額定電流A Rated curren | MAX泄漏電流A leakage current | 波導螺桿 Waveguide screw | 接線螺桿 Connecting screw | 外形尺寸Fig. Outline Drawing | 插入損耗dB insertion loss |
YX-2×400C-F-11/22 | 400 | 0.2 | 法蘭盤Flange plate | M12 | 9 | 100dB |
YX-2×500C-F-11/22 | 500 | 0.2 | 法蘭盤Flange plate | M12 | 9 |
三相產品型號表 Filter Table 注：零地電壓為0V Note: N-G voltage is 0V
型號 model | 額定電流A Rated curren | MAX泄漏電流A leakage current | 波導螺桿 Waveguide screw | 接線螺桿 Connecting screw | 外形尺寸Fig. Outline Drawing | 插入損耗dB insertion loss |
YX-4×10C-F-11/22 | 10 | 0.2 | M33 | M6 | 6 | 100dB 備注：可拓展至40GHz remarks: It can be extended to 40GHz |
YX-4×16C-F-11/22 | 16 | 0.2 | M33 | M6 | 6 | |
YX-4×32C-F-11/22 | 32 | 0.2 | M33 | M6 | 6 | |
YX-4×50C-F-11/22 | 50 | 0.2 | M33 | M6 | 6 | |
YX-4×65C-F-11/22 | 65 | 0.2 | M33 | M6 | 6 | |
YX-4×80C-F-11/22 | 80 | 0.2 | M42 | M8 | 7 | |
YX-4×100C-F-11/22 | 100 | 0.2 | M42 | M8 | 7 | |
YX-4×150C-F-11/22 | 150 | 0.2 | M42 | M8 | 7 | |
YX-4×200C-F-11/22 | 200 | 0.2 | M48 | M12 | 8 | |
YX-4x400C-F-11/22 | 400 | 0.2 | 法蘭盤Flange plate | M12 | 10 | |
YX-4x500C-F-11/22 | 500 | 0.2 | 法蘭盤Flange plate | M12 | 10 |
外形尺寸圖 Outline Drawing : mm

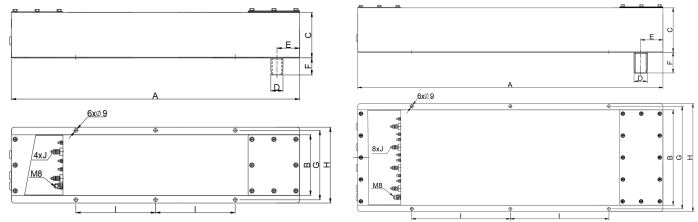

Fig.1~Fig.5
Fig.6~Fig.8
外形尺寸Fig. | A | B | C | D | E | F | G | H | I | J |
1 | 750 | 165 | 120 | M24 | 80 | 45 | 188 | 205 | 225 | M6 |
2 | 750 | 165 | 120 | M33 | 80 | 45 | 188 | 205 | 225 | M6 |
3 | 760 | 160 | 120 | M33 | 60 | 45 | 183 | 200 | 210 | M8 |
4 | 760 | 160 | 120 | M42 | 60 | 45 | 183 | 200 | 210 | M8 |
5 | 880 | 200 | 150 | M42 | 70 | 65 | 223 | 240 | 270 | M12 |
6 | 960 | 280 | 140 | M42 | 70 | 65 | 303 | 320 | 310 | M6 |
7 | 960 | 280 | 140 | M42 | 70 | 65 | 303 | 320 | 310 | M8 |
8 | 960 | 320 | 150 | M48 | 70 | 65 | 343 | 360 | 310 | M12 |

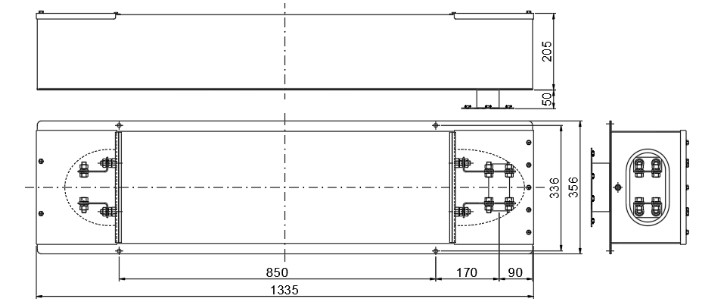

Fig.9

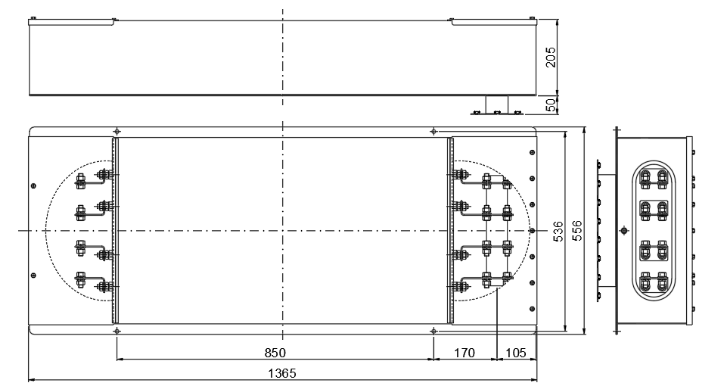

Fig.10
注：此結構殼體可用于EMC實驗室、400Hz、直流、EMP電源濾波器，具體參數請咨詢公司工程部
