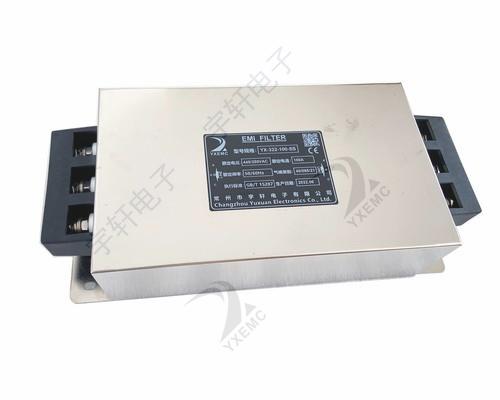

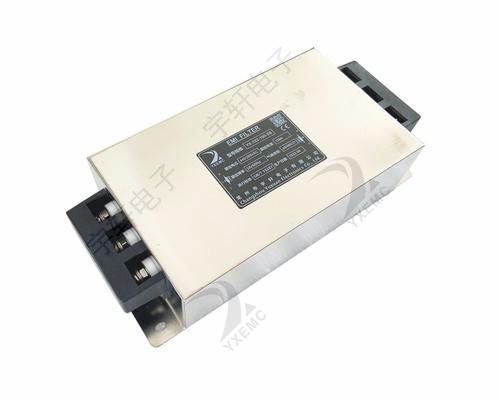

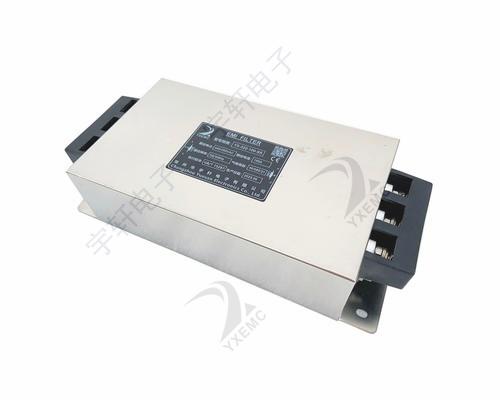

特 點 Features

● 工業逆變器和電機驅動的EMC解決方案。

EMC solutions for industrial inverters and motor drives.

● 漏電流小，底板式安裝，簡單方便。Small leakage current,

floor type installation, simple and convenient.

● 良好的共模和差模干擾衰減性能。Good common mode and

differential mode interference attenuation performance.

● 結構緊湊，體積小，性?xún)r(jià)比高。Compact structure, small size,

high cost performance.

應 用 Application

● 三相電機驅動。Three phase motor drive.

● 工業自動化。Industrial automation.

● 不間斷電源。UPS

●開關模式電源。SMPS

性能指標 Characteristcs

產品型號表 Filter Table

型號 model	接線方式：輸入輸出			額定電流A Rated curren	接地電容量nF Grounding capacity	MAX泄漏電流 * leakage current 440VAC/50Hz	電路圖Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-322-5-	TT			5	22	<1mA	1	1
YX-322-10-	TT			10	22	<1mA	1	1
YX-322-16-	TT			16	22	<1mA	1	1
YX-322-20-	TT			20	50	<2mA	1	2
YX-322-25-			SS	25	50	<2mA	1	2
YX-322-35-			SS	35	50	<2mA	1	3
YX-322-50-			SS	50	50	<2mA	1	3
YX-322-65-			SS	65	50	<2mA	1	3
YX-322-80-			SS	80	50	<4mA	2	4
YX-322-100-			SS	100	50	<4mA	2	4
YX-322-130-			SS	130	50	<4mA	2	4
YX-322-160-			SS	160	50	<4mA	2	4
YX-322-200-			SS	200	50	<4mA	2	5
*注意：如果在缺兩相這種蕞壞的狀況下，其漏電流將比正常狀態高7.7倍左右 Note: in the worst case of lack of two phases, the leakage current will be about 7.7 times higher than the normal state

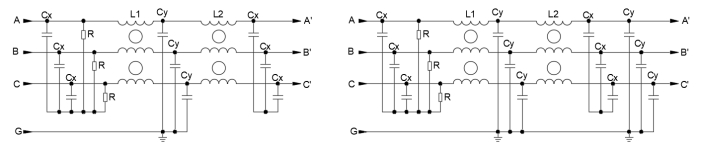

電原理圖Typical Circuit Diagram

Fig.1 Fig.2

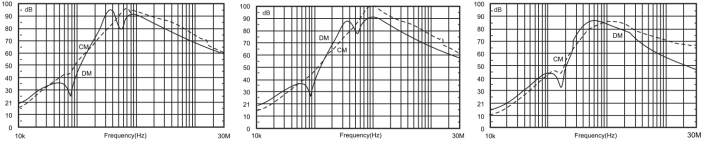

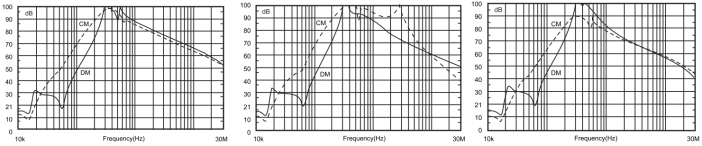

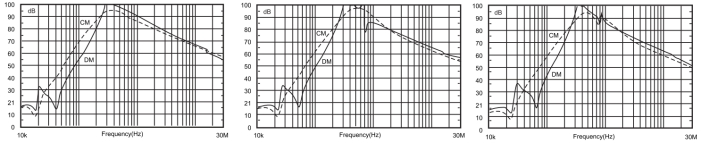

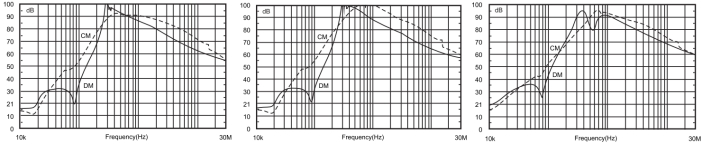

插入損耗 Insertion LOSS in dB (50Ω測量系統，IEC/CISPR No.17號出版物)

5A 10A 16A

20A 25A 35A

50A 65A 80A

100A 130A 160A~200A

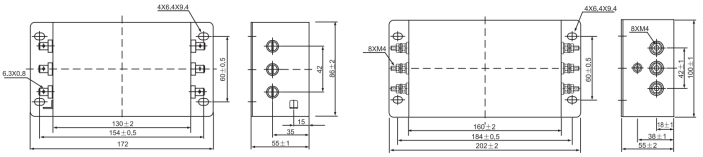

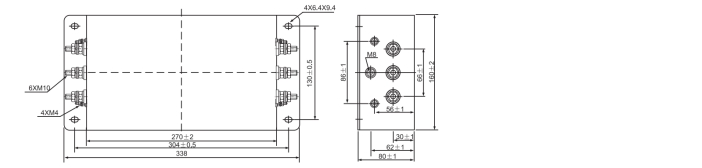

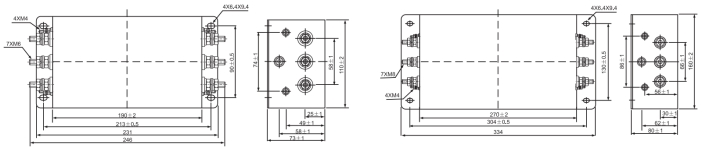

外形尺寸圖 Outline Drawing : mm

Fig.1 (5A~16A) Fig.2 (20A~25A)

Fig.3 (35A~65A) Fig.4 (80A~160A)

Fig.5 (200A)
